Máy nén Chiller Trane CGAH080

Thương hiệu : DANFOSS

Giá khuyến mại 100.000₫

Giá gốc: 200.000₫

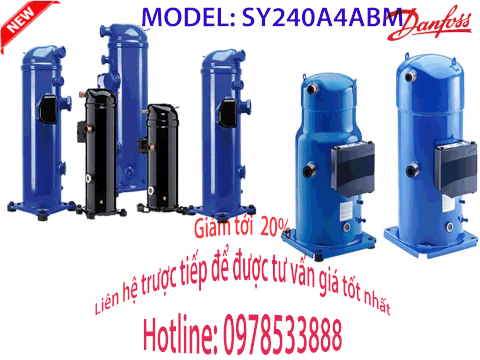

Máy nén Chiller Trane CGAH080

Danfoss SY240A4CBE

Mounting torque [Nm]

40 Nm

Nominal cooling capacity at 50Hz

55.3 kW

Nominal cooling capacity at 60Hz

74.1 kW

Number of starts per hour [Max]

12

Oil charge [L]

8 L

Oil drain

1/4'' flare

Oil drain torque [Nm]

35 Nm

Oil equalization

1/2'' flare

Oil equalization torque [Nm]

66 Nm

Oil reference

320SZ

Packaging height [mm]

780 mm

Packaging length [mm]

510 mm

Packaging weight [Kg]

156 kg

Packaging width [mm]

465 mm

Phase

3

Power connections

Stud M5

Refrigerant

R134a
R22
R407C
R513A

Refrigerant charge [kg] [Max]

16 kg

Relief valve

Yes

RLA

35.7 A

Rotational speed at 50Hz [rpm]

2900 rpm

Rotational speed at 60Hz [rpm]

3500 rpm

Suction connection height [mm]

196 mm

Suction connection pipe size [in]

1 5/8 in

Suction connection size [in]

1 5/8 in

Swept volume [cm3]

347.8 cm³

Technology

Scroll

Test dif [bar] [Max]

24 bar

Test HP [bar] [Max]

32 bar

Test LP [bar] [Max]

20 bar

Torque earth [Nm]

4 Nm

Torque power [Nm]

3 Nm

Total height [mm]

727 mm

Type

SY
