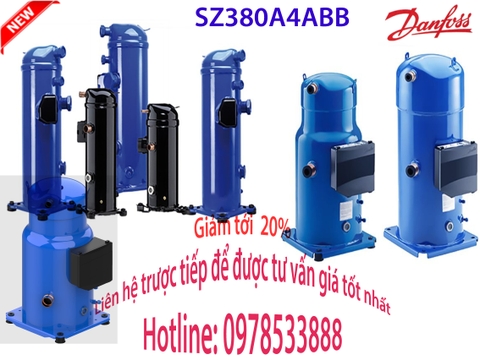

Block Danfoss SZ380A4ABB

Thương hiệu : DANFOSS

Liên hệ

Block Danfoss SZ300A4ABB

Mounting torque [Nm]

21 Nm

Nominal cooling capacity at 50Hz

89.6 kW

Nominal cooling capacity at 60Hz

89.6 kW

Nominal heating capacity at 50Hz

89.6 kW

Number of starts per hour [Max]

12

Oil charge [L]

3.6 L

Oil equalization

3/8'' flare SAE

Oil equalization torque [Nm]

48 Nm

Oil reference

160SZ

Oil type

POE

Packaging height [mm]

671 mm

Packaging length [mm]

470 mm

Packaging weight [Kg]

158 kg

Packaging width [mm]

370 mm

Packing quantity

1

Phase

3

Power connections

Screw 4.8 mm

Refrigerant

R134a
R404A
R407C
R513A

Refrigerant charge [kg] [Max]

12.5 kg

RLA

22.9 A

Rotational speed at 50Hz [rpm]

2900 rpm

Rotational speed at 60Hz [rpm]

3500 rpm

Suction connection height [mm]

180 mm

Suction connection pipe size [in]

1 3/8 in

Suction connection size [in]

1 3/8 in

Swept volume [cm3]

216.6 cm³

Technology

Scroll

Test dif [bar] [Max]

24 bar

Test HP [bar] [Max]

32 bar

Test LP [bar] [Max]

25 bar

Torque earth [Nm]

2 Nm

Torque power [Nm]

3 Nm

Total height [mm]

591 mm

Type

SZ
