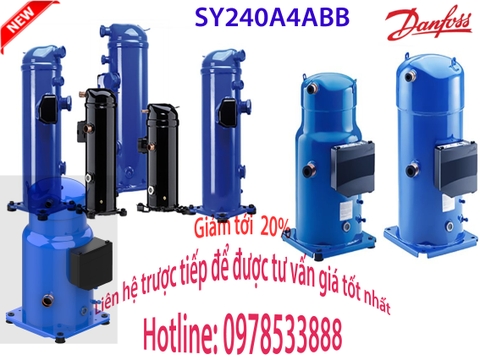

Block điều hòa Danfoss SY240A4ABB

Thương hiệu : DANFOSS

Liên hệ

Block điều hòa Danfoss SY240A4ABB

Approval standard

CE
UL

Brand technique

Scroll compressor

Capacity control

Fixed speed

Colour

Blue

Compressor power supply [V/Ph/Hz]

380/3/60

Configuration code

Single

Connection type

Brazed

Description

SY

Diameter [mm]

344 mm

Discharge connection height [mm]

665 mm

Discharge connection pipe size [in]

1 1/8 in

Discharge connection size [in]

1 1/8 in

Drawing number

8556094b

Economizer

No

Factory HP [bar]

33 bar

Factory LP [bar]

25 bar

Frequency [Hz]

60

Gauge port HP

None

Generation code

A

Glass torque [Nm]

50 Nm

GP LP torque [Nm]

15 Nm

High side max pressure (Ps)

31.8 bar

High Side TS Max

150 °C

High Side TS Min

-35 °C

High Side Volume

5 L

High value of nominal voltage at 50Hz [V]

0 V

High value of nominal voltage at 60Hz [V]

380 V

High value of voltage range at 50Hz [V]

0 V

High value of voltage range at 60Hz [V]

418 V

IP protection class

IP54 (with cable gland)

Low side max pressure (Ps)

20 bar

Low Side TS Max

52 °C

Low Side TS Min

-35 °C

Low Side Volume

34.1 L

Low value of nominal voltage at 50Hz [V]

0 V

Low value of nominal voltage at 60Hz [V]

380 V

Low value of voltage range at 50Hz [V]

0 V

Low value of voltage range at 60Hz [V]

342 V

LRA

305 A

MCC

74 A

Model number

SY240A4ABB

Motor protection

Electronic protection module, 110/240 V
