Block

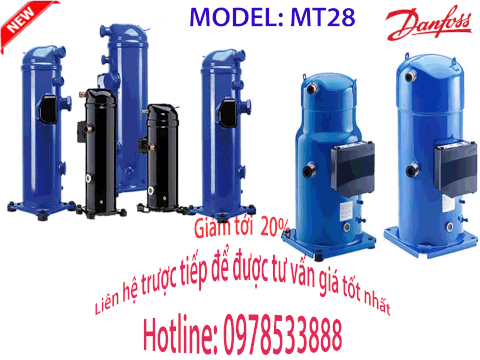

Block điều hòa Danfoss MT28JE1RVE

Thương hiệu : DANFOSS

Liên hệ

Block điều hòa Danfoss MT28JE1RVE

MCC

25 A

Model number

MT28JE1RVE

Mounting torque [Nm]

15 Nm

Nominal cooling capacity 60 kBTU/h

30.38 kBtu/h

Nominal cooling capacity at 50Hz

6.7 kW

Nominal cooling capacity at 60Hz

8.9 kW

Number of starts per hour [Max]

12

Oil charge [L]

0.95 L

Oil equalization torque [Nm]

30 Nm

Oil reference

160P

Packaging height [mm]

385 mm

Packaging length [mm]

330 mm

Packaging weight [Kg]

26 kg

Packaging width [mm]

295 mm

Phase

1

Refrigerant

R22

Refrigerant charge [kg] [Max]

2.5 kg

Rotational speed at 50Hz [rpm]

0 rpm

Rotational speed at 60Hz [rpm]

3500 rpm

Suction connection height [mm]

263 mm

Suction connection mounting torque [Nm]

90 Nm

Suction connection pipe size [in]

5/8 in

Suction connection rotolock size [in]

1 1/4 in

Suction connection size [in]

1 1/4 in

Suction connection sleeve pipe size [in]

5/8 in

Swept volume [cm3]

48.06 cm³

Test dif [bar] [Max]

30 bar

Test HP [bar] [Max]

30 bar

Test LP [bar] [Max]

25 bar

Torque earth [Nm]

3 Nm

Torque power [Nm]

3 Nm

Total height [mm]

356 mm

Voltage of capacitor A [V]

440 V

Voltage of capacitor B [V]

330 V
