Block

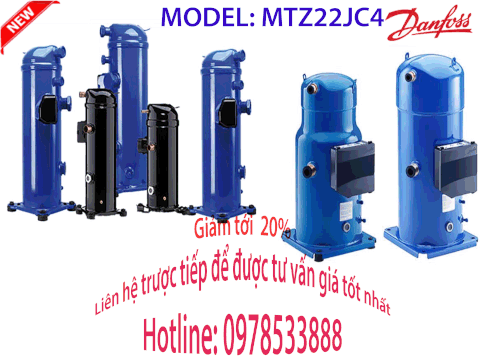

Block điều hòa MTZ22JC4

Thương hiệu : DANFOSS

Giá 20.000₫

Máy nén Danfoss MTZ22JC4 nhập khẩu chính hãng

LRA

20 A

MCC

6 A

Model number

MTZ22JC4BVE

Mounting torque [Nm]

15 Nm

Nominal cooling capacity at 50Hz

2.6 kW

Nominal cooling capacity at 60Hz

3.6 kW

Number of starts per hour [Max]

12

Oil charge [L]

0.95 L

Oil equalization

3/8'' flare SAE

Oil equalization torque [Nm]

30 Nm

Oil reference

175PZ

Packaging height [mm]

385 mm

Packaging length [mm]

330 mm

Packaging weight [Kg]

25 kg

Packaging width [mm]

295 mm

Phase

3

Power connections

Spade

Refrigerant

R134a

Refrigerant charge [kg] [Max]

2.5 kg

Rotational speed at 50Hz [rpm]

2900 rpm

Rotational speed at 60Hz [rpm]

3500 rpm

Shipped oil

Initial oil charge

Suction connection height [mm]

263 mm

Suction connection mounting torque [Nm]

80 Nm

Suction connection pipe size [in]

1/2 in

Suction connection rotolock size [in]

1 in

Suction connection size [in]

1 in

Suction connection sleeve pipe size [in]

1/2 in

Test dif [bar] [Max]

30 bar

Test HP [bar] [Max]

30 bar

Test LP [bar] [Max]

25 bar

Torque earth [Nm]

3 Nm

Torque power [Nm]

3 Nm

Total height [mm]

333 mm
