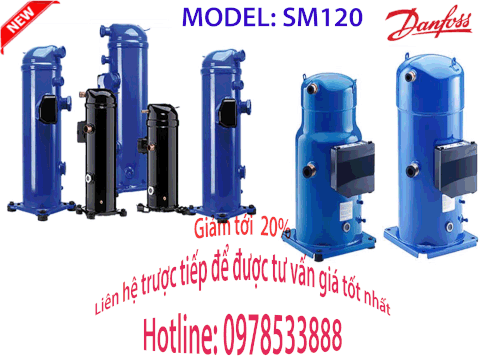

Danfoss SM124A4ALB

Thương hiệu : DANFOSS

Liên hệ

Danfoss SM124A4ALB

Model number

SM120S3VC

Mounting torque [Nm]

21 Nm

Nominal cooling capacity 60 kBTU/h

125.26 kBtu/h

Nominal cooling capacity at 60Hz

36.7 kW

Number of starts per hour [Max]

12

Oil charge [L]

3.25 L

Oil equalization

3/8'' flare SAE

Oil equalization torque [Nm]

48 Nm

Oil reference

160P

Oil type

Mineral

Packaging height [mm]

596 mm

Packaging length [mm]

470 mm

Packaging weight [Kg]

78 kg

Packaging width [mm]

370 mm

Packing quantity

1

Phase

3

Power connections

Screw 4.8 mm

Refrigerant

R22

Refrigerant charge [kg] [Max]

10 kg

Relief valve

None

RLA

35.7 A

Rotational speed at 50Hz [rpm]

0 rpm

Rotational speed at 60Hz [rpm]

3500 rpm

Suction connection height [mm]

178 mm

Suction connection pipe size [in]

1 3/8 in

Suction connection size [in]

1 3/8 in

Swept volume [cm3]

166.6 cm³

Technology

Scroll

Test dif [bar] [Max]

24 bar

Test HP [bar] [Max]

32 bar

Test LP [bar] [Max]

25 bar

Torque earth [Nm]

2 Nm

Torque power [Nm]

3 Nm

Total height [mm]

558 mm

Type

SM
