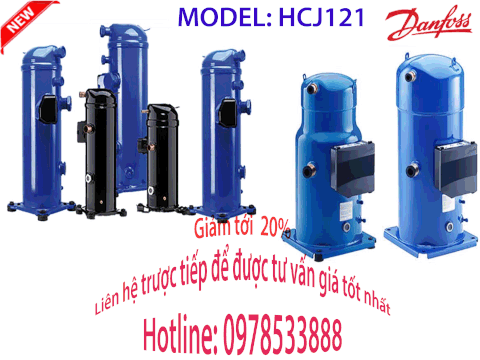

Máy nén Danfoss HCJ121

Thương hiệu : DANFOSS

Giá 20.000₫

Máy nén Danfoss HCJ121

Nominal cooling capacity 60 kBTU/h

122.65 kBtu/h

Nominal cooling capacity at 60Hz

35.9 kW

Oil charge [L]

2.46 L

Oil drain

None

Oil equalization

None

Oil reference

320HV

Oil type

PVE

Phase

3

Refrigerant

R410A

Refrigerant charge [kg] [Max]

7.26 kg

RLA

17.9 A

Rotational speed at 50Hz [rpm]

2900 rpm

Rotational speed at 60Hz [rpm]

3500 rpm

Suction connection height [mm]

405 mm

Suction connection pipe size [in]

1 1/8 in

Suction connection size [in]

1 1/8 in

Swept volume [cm3]

116.4 cm³

Torque earth [Nm]

2 Nm

Torque power [Nm]

3 Nm

Total height [mm]

565 mm

Viscosity [cP]

68 cP

Width [mm]

239 mm

Winding resistance 1-2 [Ohm]

0.96 Ohm

Winding resistance 1-3 [Ohm]

0.94 Ohm

Winding resistance 2-3 [Ohm]

0.96 Ohm
