Máy

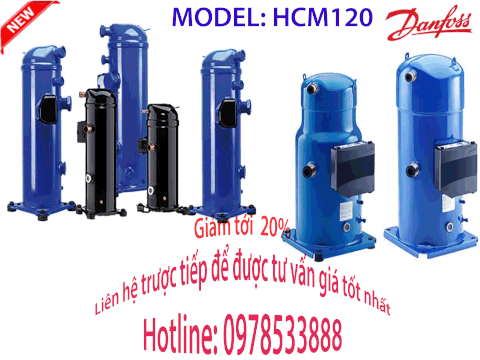

Máy nén Danfoss HCM120T4LC6

Thương hiệu : DANFOSS

Giá 20.000₫

Máy nén Danfoss HCM120T4LC6

Nominal cooling capacity at 50Hz

26.3 kW

Nominal cooling capacity at 60Hz

34.9 kW

Nominal heating capacity at 50Hz

17 kW

Oil charge [L]

2.66 L

Oil equalization

None

Oil reference

160ABM

Oil type

Alkylbenzene

Phase

3

Refrigerant

R22

Refrigerant charge [kg] [Max]

7.26 kg

RLA

19.2 A

Rotational speed at 50Hz [rpm]

2900 rpm

Rotational speed at 60Hz [rpm]

3500 rpm

Suction connection height [mm]

369 mm

Suction connection pipe size [in]

1 1/8 in

Suction connection size [in]

1 1/8 in

Swept volume [cm3]

162.4 cm³

Torque earth [Nm]

2 Nm

Torque power [Nm]

3 Nm

Width [mm]

232 mm

Winding resistance 1-2 [Ohm]

1.13 Ohm

Winding resistance 1-3 [Ohm]

1.11 Ohm

Winding resistance 2-3 [Ohm]

1.1 Ohm
