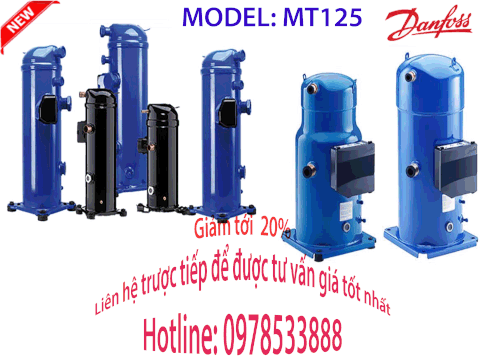

Máy nén lạnh Danfoss MT125

Thương hiệu : DANFOSS

Liên hệ

Máy nén lạnh Danfoss MT125

MCC

54 A

Model number

MT125HU3DVE

Mounting torque [Nm]

50 Nm

Nominal cooling capacity 60 kBTU/h

124.57 kBtu/h

Nominal cooling capacity at 50Hz

27.8 kW

Nominal cooling capacity at 60Hz

36.5 kW

Number of starts per hour [Max]

12

Oil charge [L]

3.9 L

Oil equalization

3/8'' flare SAE

Oil equalization torque [Nm]

30 Nm

Oil reference

160P

Packaging height [mm]

720 mm

Packaging length [mm]

570 mm

Packaging weight [Kg]

71 kg

Packaging width [mm]

400 mm

Phase

3

Refrigerant

R22

Refrigerant charge [kg] [Max]

10 kg

Relief valve

30 bar/8 bar

Rotational speed at 50Hz [rpm]

0 rpm

Rotational speed at 60Hz [rpm]

3500 rpm

Suction connection height [mm]

233 mm

Suction connection mounting torque [Nm]

110 Nm

Suction connection pipe size [in]

1 1/8 in

Suction connection rotolock size [in]

1 3/4 in

Suction connection size [in]

1 3/4 in

Suction connection sleeve pipe size [in]

1 1/8 in

Swept volume [cm3]

215.44 cm³

Test dif [bar] [Max]

30 bar

Test HP [bar] [Max]

30 bar

Test LP [bar] [Max]

25 bar

Torque earth [Nm]

3 Nm

Torque power [Nm]

3 Nm

Total height [mm]

519 mm

Type

MT
